This model is a Biosafety Cabinet with 1300mm nominal size and NSF Certified. Product is registered with the Medical Device Authority with Registration Number: IVDA9819721-66212.
Description

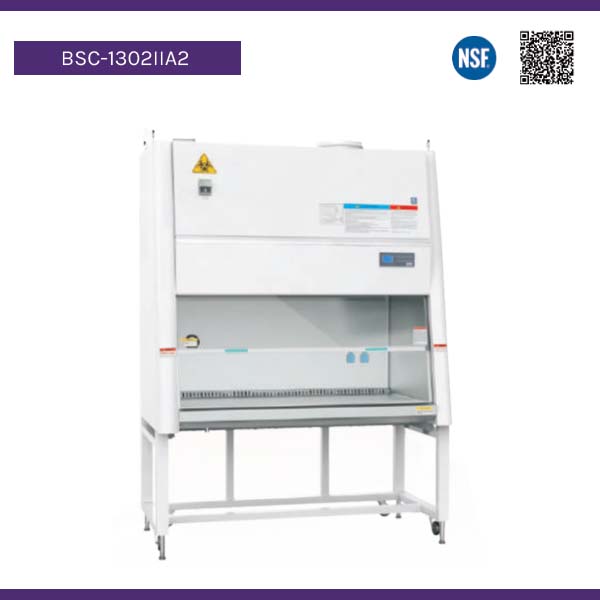

PRODUCT: BIOSAFETY CABINET CLASS II TYPE A2 1300mm NSF CERTIFIED (BSC-1302IIA2)
Friendly Control Panel
– LED screen, show the air velocity, time, fan station, and alarm in real-time.
Safe and Reliable, Energy-Efficient
– DC fan and LED light make the operation power consumption save 30%.
– Intelligent auto-supply system of imported blower ensures the change of air volume is less than 10% when the resistance of the filter increases by 50% and enhance safety.
– The alarm system for safe operation height is interlocked with light. At the same time, light is interlocked with sterilizing.
– Leak detection in the cabinet, no leakage at 500Pa.
– UV light with set timer, safer and high efficiency.
Humanized Design
– 10°sloped front makes it comfortable to operate.
– Negative pressure and double layers chamber around ensure non-leakage, non-pollution. A demountable circular-arc armrest can alleviate working tiredness and make it easy to transport.
– The front window adopts a hanging lifting system (Imported from Japan) and more than 5mm thickness security glass with arbitrary positioning, high stability and convenience for sterilization when it is closed.
– Movable stainless steel worktable 4 liter capacity stainless steel collecting tank with blowdown valve, easy to collect water, cleaning and disinfection.
– Non-obstructive air return mode in the front suction channel.
– The adjustable levelling foot is without exposure thread.
HEPA Filters
– USA HV HEPA Filter Medium, provide 99.995% typical efficiency for particle size over 0.3 microns, and the material is glass fibre.
– A minimum ISO 5 air quality in the work area
– Unique Technology of non-leakage.
– Every HEPA filter will be tested to ensure non-leakage.
Model BSC-1302IIA2
Filtration Efficiency: HEPA: ≥99.995%, @ 0.3μm/ULPA: ≥99.995%, @ 0.12μm
Downflow Velocity: 0.35 m/s (68.88 fpm)
Inflow Velocity: 0.54 m/s (106.27 fpm)
Noise: ≤67 dB(A)
Vibration: ≤5μm (center of table top)
Power Supply: AC230 V, 1Ø, 50/60 Hz
Opening Height: 250 mm
Personnel Protection: a. Total colony in impaction sampler ≤10 CFU./time, b. Total colony slot sampler ≤5 CFU./time
Product Protection: Total colony in culture dish ≤5 CFU./time
Cross-contamination Protection: Total colony in culture dish ≤2 CFU./time
Weight: 300 kg
Work Dimension (W x D x H): 1270 x 600 x 620 mm
Overall Dimension (W x D x H): 1500 x 790 x 2050 mm
Size and Quantity of Light: LED 24.5 W x (2)
Size and Quantity of UV Light: 15 W x (2)
Lumination: ≥750 Lx
Cabinet Materials: High-grade steel and lacquered in ivory
Working Area Materials: SS304 fully finished
Air Direction: Top out
Rated Power (without spare socket): 0.46 kVA
