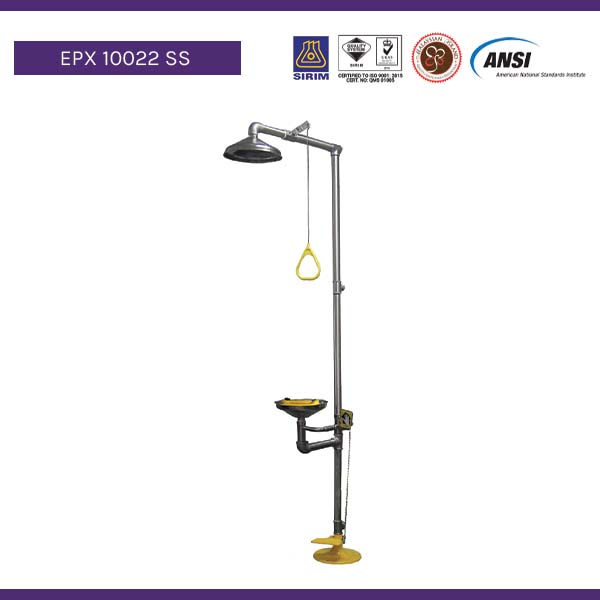

Ensure the safety and well-being of your workforce with the EPX 10022 SS Stainless Steel Safety Station. Built with precision and style, it’s an indispensable addition to environments where safety and aesthetics go hand in hand. This particular unit comes with a foot pedal.
Available in fully stainless steel 304.
Certified to ANSI/ISEA Z358.1-2014 Standard.
PRODUCT DETAILS – COMBINATION UNIT OF DRENCH SHOWER AND EYEWASH WITH FOOT PEDAL IN NATURAL STAINLESS STEEL FINISH
Shower Bowl – 280mm (11″) bowls are in polished stainless steel for long-lasting use and recommended for outdoor installation.
Eyewash Assembly – Stainless steel spray heads assembly with twin, soft-flow emergency eyewash heads and instant flip-open protective dust cover. Also, the built-in automatic pressure compensating valve assures safe steady flow under varying water supply conditions. In addition, the spray heads also include a filter to protect users against particles from the water flow which may be damaging to the eyes and face.
Control Valve – The eyewash assembly is using a 316 stainless steel 1/2″ IPS valve that stays open until manually closed. Other than that, this full stainless steel combination unit also has a large, highly visible stainless steel push-plate & foot pedal that operates the control valve. Meanwhile, for the shower assembly, this combination unit is using a 316 stainless steel 1″ ball valve with the stainless steel pull rod.
Pipe and Fitting – 1″ IPS stainless steel pipe with original finish.
Pedestal – 250mm (10″) stainless steel pedestal with 3 mounting holes for 9mm bolts.
Waste – 1″ IPS tailpiece
Water Supply – 1″ IPS
Signage – Drench Shower and Eyewash
Option – For Combination Unit of Drench Shower and Eyewash with Natural Stainless Steel Finish, please check model EPX 10020 SS.
Certified to ANSI/ISEA Z358.1-2014 Standard.
| Model | EPX 10022 SS |
|---|---|
| Bowl Size | 280 mm |
| Bowl Material | Stainless Steel 304 |
| Nominal Pipe Size | 1 inch |
| Inlet Size | 1 inch |
| Shower Flow Rate | At least 90 l/m |
| Eyewash Flow Rate | At least 15 l/m |
| Recommended Working Pressure | 2 Bar |
| Stanchion | Stainless Steel 304 |
| Connecting Fittings | Stainless Steel 304 |
| Control Valve | Stainless Steel 316 |
| Signage | Drench Shower and Eyewash |
| Certification | ANSI Z358.1 & AS 4775 |
