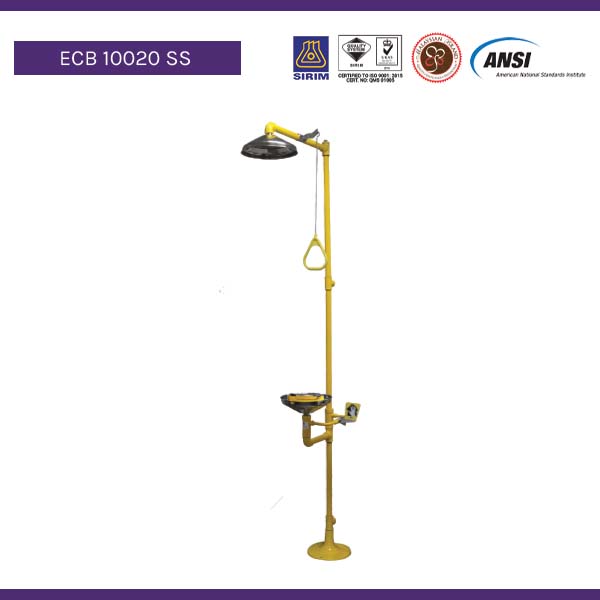

Combination Shower & Eyewash with Stainless Steel Bowl

This combination unit of drench shower & eyewash with stainless steel bowl is suitable in the workplace where fire and chemical spillages may occur. All control valves are the instant action, stay opened type of ball valve.

Certified to ANSI/ISEA Z358.1-2014 Standard.

ANSI Z358.1-2014: Emergency Eyewash and Shower Standard

SKU: ECB 10020 SS Category:

Description

PRODUCT DETAILS – COMBINATION SHOWER & EYEWASH WITH STAINLESS STEEL BOWL

Shower & Eyewash Bowl – 280mm (11″) stainless steel bowl for long-lasting use and recommended for outdoor use.

Eyewash Assembly – Stainless steel with ABS spray heads assembly with twin, soft-flow emergency eyewash heads and instant flip-open protective dust cover. Also, the built-in automatic pressure compensating valve assures safe steady flow under varying water supply conditions. In addition, the spray heads also include a filter to protect users against particles from the water flow which may be damaging to the eyes and face.

Control Valve – The eyewash assembly is using a 316 stainless steel 1/2″ IPS valve that stays open until manually closed. Other than that, this unit also has a large, highly visible stainless steel push-plate that operates the control valve. Meanwhile, for the shower assembly, this combination unit is using a 316 stainless steel 1″ ball valve with the stainless steel pull rod.

Pipe and Fitting – 1″ IPS stainless steel pipe epoxy powder coated in bright yellow colour.

Pedestal –  250mm (10″) aluminium pedestal with 3 mounting holes for 9mm bolts. The pedestal is epoxy powder coated in bright yellow colour.

Waste – 1″ IPS tailpiece

Water Supply – 1″ IPS

Signage – Drench Shower and Eyewash

Option – For Combination Shower & Eyewash with ABS Plastic Bowl,  please check model ECB 10020AB.



Certified to ANSI/ISEA Z358.1-2014 Standard.

Additional information

Model

ECB 10020 SS

Bowl Size

280 mm

Bowl Material

Stainless Steel 304

Nominal Pipe Size

1 inch

Inlet Size

0.5 inch

Shower Flow Rate

At least 90 l/m

Eyewash Flow Rate

At least 15 l/m

Stanchion

Stainless Steel 304

Connecting Fittings

Stainless Steel 304

Control Valve

Stainless Steel 316

Signage

Drench Shower and Eyewash

Certification

ANSI Z358.1 & AS 4775
