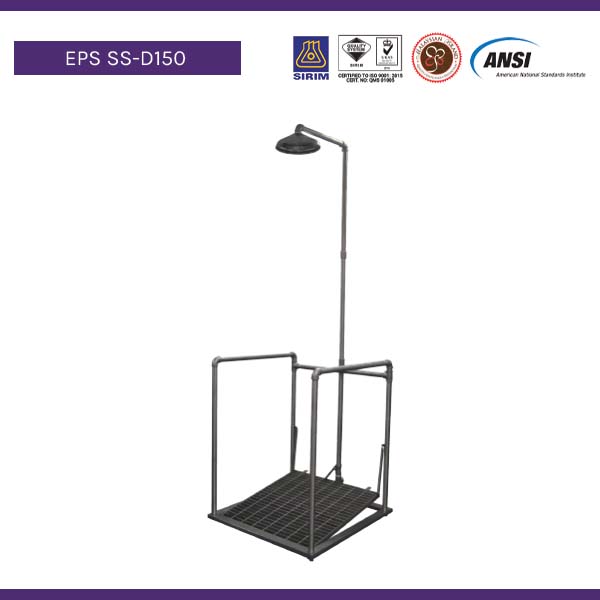

Decontamination Shower in Stainless Steel 304 Platform Operated

This model is designed for cleanroom and areas where airborne particles is a concern. It can rapidly assist to remove contaminants from the body with a deluge of flushing water. The control valves are the instant action, stay opened type of ball valve that activates when casually steps on the platform. Valve will automatically shut when stepping off the platform.

Compliance with  ANSI/ISEA Z358.1-2014 Standard.

ANSI Z358.1-2014: Emergency Eyewash and Shower Standard

SKU: EPS SS-D150 Category:

Description

PRODUCT: DECONTAMINATION EMERGENCY SHOWER IN STAINLESS STEEL 304 PLATFORM OPERATED

Shower Assembly – 280mm (11″) bowls are in polished stainless steel. Therefore, it is suitable for long-lasting use and recommended for outdoor installation.

Control Valve – 1″ fast-action 316 stainless steel ball valve that activates when casually steps on the platform. In addition, the valve will automatically shut when stepping off the platform.

Platform – Stainless steel 304 grade. The size is 850mm x 850mm.

Pipe and Fitting – 1″ stainless steel pipe with original finish.

Waste – 1″ IPS with self-draining valve for residual water.

Water Supply – 1″ IPS

Signage – Drench Shower

Option – There is one other full stainless emergency fixtures – model ECB10022XSS.



Compliance with ANSI/ISEA Z358.1-2014 Standard.

Additional information

Model

EPS SS-D150

Bowl Size

280mm

Bowl Material

Stainless Steel 304

Nominal Pipe Size

1 inch

Inlet Size

0.5 inch

Shower Flow Rate

At least 90 l/m

Eyewash Flow Rate

At least 15 l/m

Stanchion

Stainless Steel 304

Connecting Fittings

Stainless Steel 304

Control Valve

Stainless Steel 316

Signage

Drench Shower and Eyewash

Certification

ANSI Z358.1 & AS 4775
